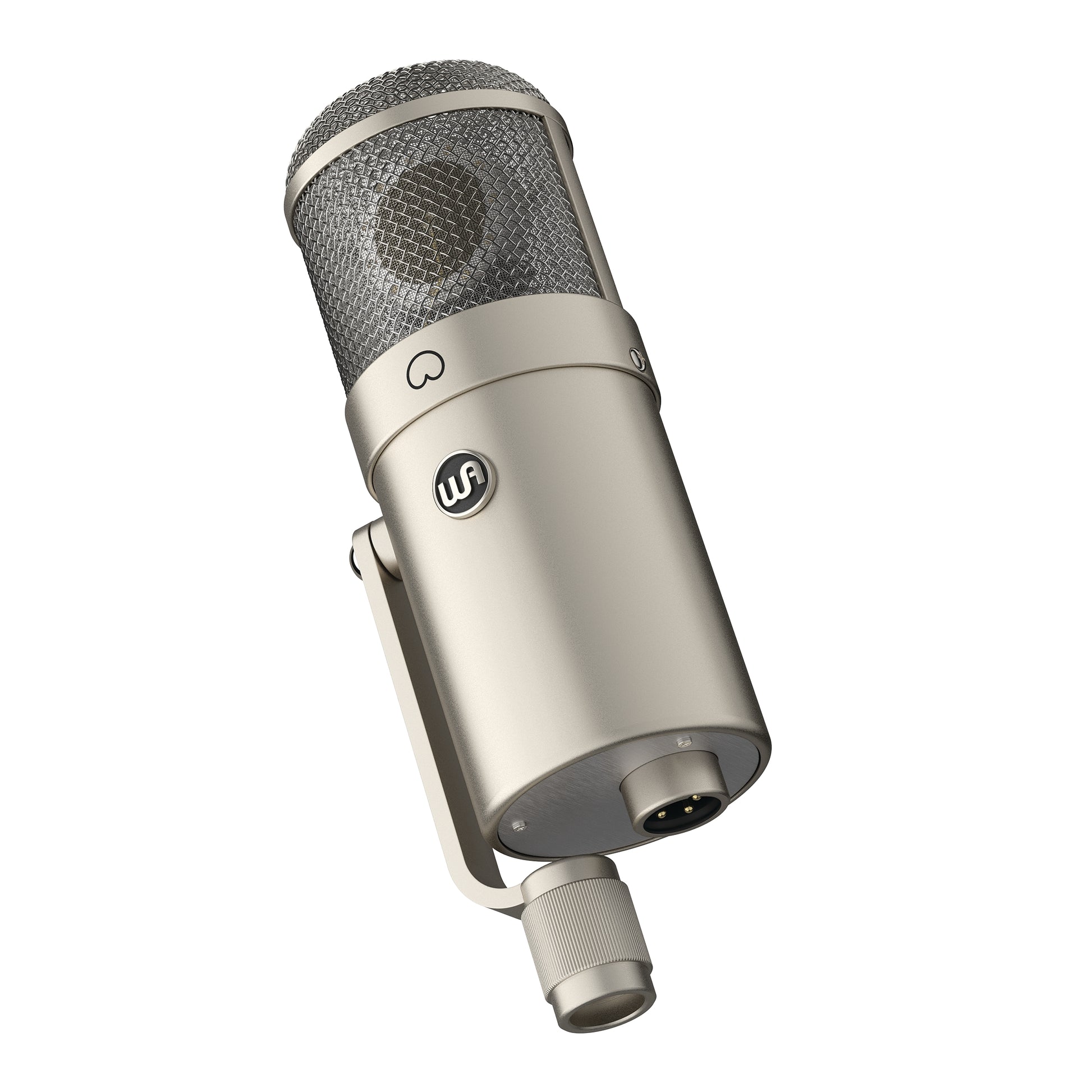

WA-47F - Large Diaphragm FET Condenser Microphone

No Sound Too Loud The WA-47F is a faithful recreation of a high-SPL, low-noise classic celebrated as a 'secret weapon' across world class studios. The original U47 FET was released in 1969 and gained massive popularity inside recording studios for its ability to handle fast transients and high SPLs. The high SPL handling, especially for a condenser mic, meant that engineers could make kick drums sound huge, and it meant that engineers no longer had to compromise between volume and detail with certain sources. Tech Specs áGold Sputtered, Large Diaphragm, Single Backplate, K47 Style Capsule áCustom TAB-Funkenwerk (AMI) USA Output Transformer áPremium Fairchild Transistors áWIMA and Polystyrene Capacitors áPolar Pattern: Cardioid áMax SPL: 137 dB, 1 á47 dB with l0dB pad engaged áFrequency Response: 20Hz-19kHz áOutput Impedance: 150 ohms áRated Load Impedance: >1kOhms áPads and Filters: -l0dB pad, 140 Hz low-cut filter áSignal-to-Noise Ratio (+ weighted): 69 dB, 76 dB-A áEIN / Self-noise (+ weighted): 25dB, 18 dB-A áTotal Weight: 3.5Ibs, Mic only: 2Ibs áMic Dimensions: 8 inch. x 2.75 inch. (20.3cm x 7cm)
